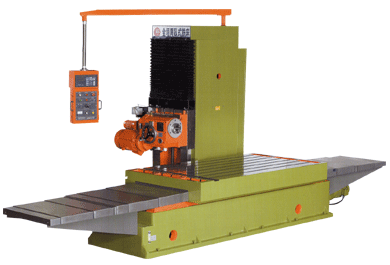

CY 1500-5000 Horizontal Milling Machine

Categories: , Tags: ,

Description





Features
Spindle head gear box design, all the gear with high accuracy grinding, to offer heavy cutting, high torque and high precision feature.
Optional accessories
Hydraulic index table provide the low cost, and high speed work pieces efficiency.


Specifications

Model Unit CY-1500 CY-2000 CY-2500
X Axis travel mm 1500 2000 2500
Y Axis travel mm 600 800(std)/1000, 1200(opt)
Table size mm 1500×700 2000×800 2500×800
Table size (opt) mm 2000×1200 2500×1200
Spindle motor HP 10 10(std)/15(opt)
Spindle speed mm 300 (10HP)300 / (15HP)400 or 600
Spindle travel rpm 10HP 90~615 (6 step speed) / 15HP 80~800 ( 9 step speed)
Machine weight kgs 5500 8600 11000
Machine size L mm 4900 5900 7100
W mm 2030 2200 2300
H mm 2270 2780 2780
Model Unit CY-3000 CY-4000 CY-5000
X Axis travel mm 3000 4000 5000
Y Axis travel mm 800(標配)/1000, 1200(選配)
Table size mm 3000×800 4000×800 5000×800
Table size (opt) mm 3000×1200 4000×1200 5000×1200
Spindle motor HP 10(標配)/15(選配)
Spindle speed mm (10HP)300 / (15HP)400 或600
Spindle travel rpm 10HP 90~615 (6段變速) / 15HP 80~800 ( 9段變速)
Machine weight kgs 12500 15000 19000
Machine size L mm 8000 10000 12000
W mm 2300 2300 2300
H mm 2780 2800 2800

* Specifications subject to change without prior notice.
* Larger sizes are also available.
