Description
Features
Control panel
Lubrication oil control valve
Pressure-reserved lubrication oil control valve are installed as standard to control lubrication oil supply as even as possible to ball screw, Gear and 3 axes.
Pressure-reserved lubrication oil control valve are installed as standard to control lubrication oil supply as even as possible to ball screw, Gear and 3 axes.
CNC Rotary Table
Standrd Accessories
1. Tool box and tools.
2. Working light
3. Draw bar. (manual)
4. Chip cover on Y axis(rubber)
5. X, Y, Z axis AC servo motor
6. Control panel(EMBED2-900)
2. Working light
3. Draw bar. (manual)
4. Chip cover on Y axis(rubber)
5. X, Y, Z axis AC servo motor
6. Control panel(EMBED2-900)
Optional Accessories
1. DRO
2. Draw bar. (pneumatic)
3. Coolant system
4. CNC rotary table
5. Chip cover on Y axis(stainless)
6. Full cover sheet metal
2. Draw bar. (pneumatic)
3. Coolant system
4. CNC rotary table
5. Chip cover on Y axis(stainless)
6. Full cover sheet metal
Specification

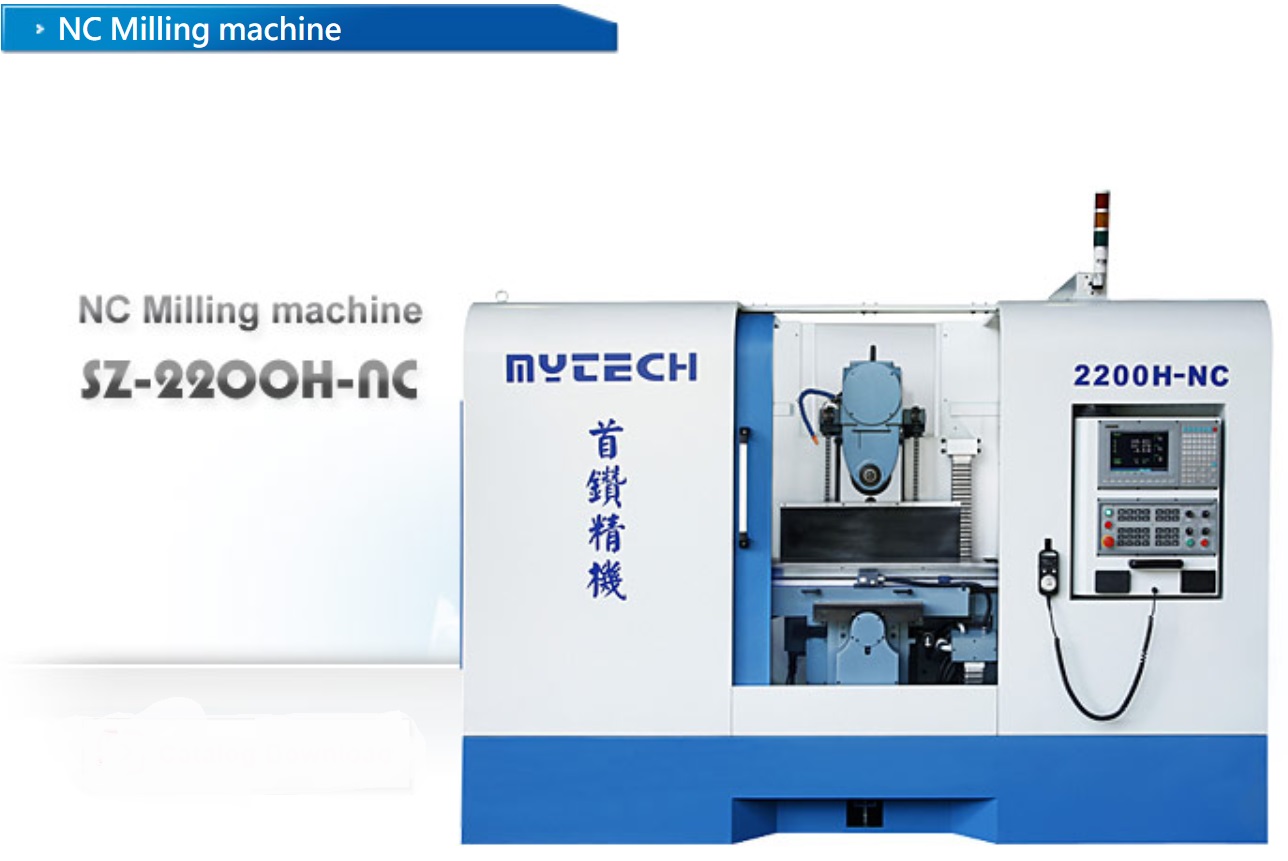

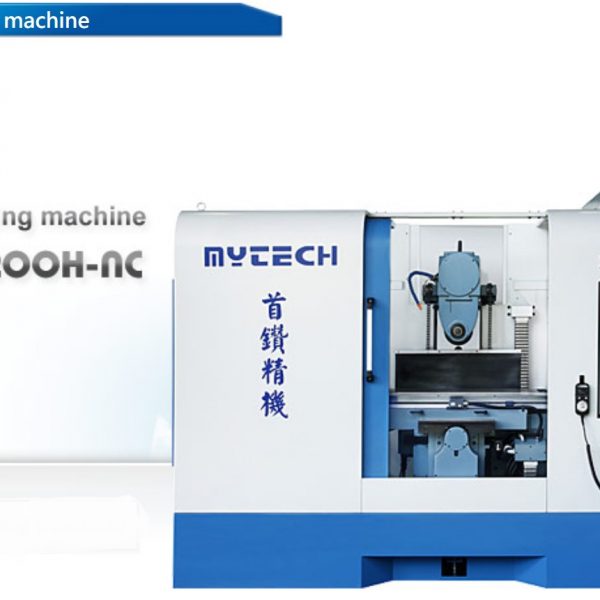

| Model | SZ-2200H-NC | |
|---|---|---|
| Main Spindle | Horizontal speed | 75~1050rpm 9 speed |
| Table | Working table area (LxW) | 1350 x 305mm |
| Longitudinal travel manual/auto | 800mm | |
| Cross travel | 400mm | |
| Vertical travel of knee | 400mm | |
| T-slots (widex no.x pitch) | 16 x 3 x 63mm | |
| Cutting federate | 0 ~ 1500mm / min | |
| Rapid traverse | 3000mm / min | |
| Table elevating speed | 1150mm / min | |
| Motor | Main spindle | 3.5kw (5HP) |
| Table elevating | 0.75kw (1HP) | |
| Lubricating pump | 150w | |
| Electromagnetic pump | 40w | |
| Machine Weight & Packing | Machine measurement | 3000 x 2000 x 2100mm |
| Sheet metal packing measurement | 3150 x 1880 x 2250mm | |
| Machine packing measurement | 1910 x 1550 x 2150mm | |
| Machine Net weight | 2500kgs | |
| Machine Gross weight | 2700kgs | |
| Sheet metal net weight | 300kgs | |
| Sheet metal gross weight | 500kgs | |
| * All specification , dimension and design characteristics shown in this catalogue are subject to change without notice. |
