Description

Features

Wide range surface on the beam to offer the accuracy cutting and the large working space.
3 axes box way design, to offer the heavy cutting and table loading.
High quality machine’s material and outstanding structural design to supply high stability, rigidity and accuracy.

Specifications

Model		Unit	CH-2012	CH-2512	CH-3012	CH-4012
X Axis travel		mm	2000	2500	3000	4000
Y Axis travel		mm	1200
Z Axis travel(head)		mm	(std) (10HP)300/(15HP)400 or 600(opt)
Distance between the column		mm	1230
Spindle nose to table surface		mm	900
Table size		mm	2000×800	2500×800	3000×800	4000×800
Vertical head motor		HP	10(std)/15(opt)
Side head motor		HP	10
Driving system		mm	Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor		HP	2
Beam up / Down motor		HP	2
Cutting feed rate		mm	Variable speed
Machine weight		kgs	11500	13500	15800	18000
Machine size	L	mm	6180	7300	8200	10500
	W	mm	3000
	H	mm	2700

Model		Unit	CH-2015	CH-2515	CH-3015
X Axis travel		mm	2000	2500	3000
Y Axis travel		mm	1500
Z Axis travel(head)		mm	(std)(10HP)300/(15HP)400 or 600(opt)
Distance between the column		mm	1530
Spindle nose to table surface		mm	1000(std)/1200(opt)
Table size		mm	2000×1200	2500×1200	3000×1200
Vertical head motor		HP	10(std)/15(opt)
Side head motor		HP	10
Driving system		mm	Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor		HP	2
Beam up / Down motor		HP	2
Cutting feed rate		mm	Variable speed
Machine weight		kgs	14000	16000	18500
Machine size	L	mm	6180	7300	8200
	W	mm	3300
	H	mm	2900

Model		Unit	CH-4015	CH-5015	CH-6015
X Axis travel		mm	4000	5000	6000
Y Axis travel		mm	1500
Z Axis travel(head)		mm	(std)(10HP)300/(15HP)400 or 600(opt)
Distance between the column		mm	1530
Spindle nose to table surface		mm	1000(std)/1200(opt)
Table size		mm	4000×1200	5000×1200	6000×1200
Vertical head motor		HP	10(std)/15(opt)
Side head motor		HP	10
Driving system		mm	Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor		HP	2
Beam up / Down motor		HP	2
Cutting feed rate		mm	Variable speed
Machine weight		kgs	20500	23000	26500
Machine size	L	mm	10500	12650	14580
	W	mm	3300
	H	mm	2900

Model		Unit	CH-2515	CH-3018	CH-4018	CH-5018	CH-6018
X Axis travel		mm	2500	3000	4000	5000	6000
Y Axis travel		mm	1800
Z Axis travel(head)		mm	(std)(10HP)300/(15HP)400 or 600(opt)
Distance between the column		mm	1830
Spindle nose to table surface		mm	1000(std)/1200(opt)
Table size		mm	2500×1400	3000×1400	4000×1400	5000×1400	6000×1400
Vertical head motor		HP	10(std)/15(opt)
Side head motor		HP	10
Driving system		mm	Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor		HP	2
Beam up / Down motor		HP	2
Cutting feed rate		mm	Variable speed
Machine weight		kgs	18300	20000	22500	25000	29000
Machine size	L	mm	7300	8200	10500	12650	14580
	W	mm	3680
	H	mm	2900

* Specifications subject to change without prior notice.
* Larger sizes are also available.

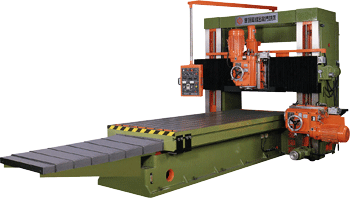

CH 2012 – 6018 Medium Plano Miller
