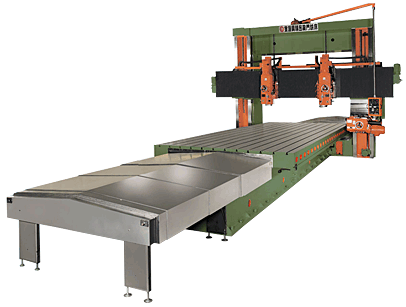

CHM 3020 – 12055 Large Plano Miller

Description





Features

1. Wide range surface on the beam to offer the accuracy cutting and the large working space.
2. 3 axes box way design, to offer the heavy cutting and table loading.
3. High quality machine’s material and outstanding structural design to supply high stability, rigidity and accuracy.



Specifications Model Unit CHM-3020 CHM-4020 CHM-5020 CHM-6020 X Axis travel mm 3000 4000 5000 6000 Y Axis travel mm 2000 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 2050 Spindle nose to table surface mm 1500 Table size mm 3000×1500 4000×1500 5000×1500 6000×1500 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Ball screw Vertical head left / right motor HP 2 Beam up / Down motor HP 3 Cutting feed rate mm Variable speed Machine weight kgs 26000 29000 33500 37000 Machine size L mm 8380 10980 12780 15000 W mm 4500 H mm 3980 Model Unit CHM-3025 CHM-4025 CHM-5025 X Axis travel mm 3000 4000 5000 Y Axis travel mm 2500 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 2550 Spindle nose to table surface mm 1700(std)/2000, 2500(opt) Table size mm 3000×2000 4000×2000 5000×2000 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Ball screw Vertical head left / right motor HP 2 Beam up / Down motor HP 3 Cutting feed rate mm Variable speed Machine weight kgs 37000 45000 51500 Machine size L mm 8380 11000 12800 W mm 5200 H mm 4950(std)/5400, 5900(opt) Model Unit CHM-6025 CHM-8025 CHM-10025 X Axis travel mm 6000 8000 10000 Y Axis travel mm 2500 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 2550 Spindle nose to table surface mm 1700(std)/2000, 2500(opt) Table size mm 6000×2000 8000×2000 10000×2000 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Ball screw Gear type(std) Ball screw(opt) Vertical head left / right motor HP 2 Beam up / Down motor HP 3 Cutting feed rate mm Variable speed Machine weight kgs 56000 71000 88000 Machine size L mm 15000 19500 25800 W mm 5200 H mm 4950(std)/5400, 5900(opt) Model Unit CHM-4030 CHM-5030 CHM-6030 X Axis travel mm 4000 5000 6000 Y Axis travel mm 3000 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 3050 Spindle nose to table surface mm 1700(std)/2000, 2500(opt) Table size mm 4000×2500 5000×2500 6000×2500 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Ball screw Vertical head left / right motor HP 2 Beam up / Down motor HP 5 Cutting feed rate mm Variable speed Machine weight kgs 49000 55000 62000 Machine size L mm 11000 12800 15000 W mm 5700 H mm 5100(std)/5500, 6000(opt) Model Unit CHM-8030 CHM-10030 X Axis travel mm 8000 10000 Y Axis travel mm 3000 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 3050 Spindle nose to table surface mm 1700(std)/2000, 2500(opt) Table size mm 8000×2500 10000×2500 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Gear type(std) Ball screw(opt) Vertical head left / right motor HP 2 Beam up / Down motor HP 5 Cutting feed rate mm Variable speed Machine weight kgs 80000 96000 Machine size L mm 19500 25800 W mm 5700 H mm 5100(std)/5500, 6000(opt) Model Unit CHM-5035 CHM-6035 CHM-8035 CHM-10035 X Axis travel mm 5000 6000 8000 10000 Y Axis travel mm 3500 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 3550 Spindle nose to table surface mm 2000(std) / 2500, 3000(opt) Table size mm 5000×3000 6000×3000 8000×3000 10000×3000 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Ball screw Gear type(std) Ball screw(opt) Machine weight kgs 63000 73000 90000 110000 Machine size L mm 12800 15000 19800 26000 W mm 6300 H mm 5600(std) / 6150,6650(opt) Model Unit CHM-6042 CHM-8042 CHM-10042 CHM-12042 X Axis travel mm 6000 8000 10000 12000 Y Axis travel mm 4200 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 4250 Spindle nose to table surface mm 2000(std) / 2500, 3000, 3500, 4000(opt) Table size mm 6000×3200 8000×3200 10000×3200 12000×3200 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Ball screw Gear type(std) Ball screw(opt) Machine weight kgs 82000 105000 128000 152000 Machine size L mm 15000 19800 26000 29500 W mm 7100 H mm 5600(std) / 6150, 6650, 7150, 7650(opt) Model Unit CHM-6050 CHM-8050 CHM-10050 CHM-12050 X Axis travel mm 6000 8000 10000 12000 Y Axis travel mm 5000 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 5050 Spindle nose to table surface mm 2000(std) / 2500, 3000, 3500, 4000(opt) Table size mm 6000×4000 8000×4000 10000×4000 12000×4000 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Ball screw Gear type(std) Ball screw(opt) Machine weight kgs 100000 112000 132000 152000 Machine size L mm 15000 19800 26000 29500 W mm 7800 H mm 5600(std) / 6150, 6650, 7150, 7650(opt) Model Unit CHM-8055 CHM-10055 CHM-12055 X Axis travel mm 8000 10000 12000 Y Axis travel mm 5500 Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt) Distance between the column mm 5550 Spindle nose to table surface mm 2000(std) / 2500, 3000, 3500, 4000(opt) Table size mm 8000×4000 10000×4000 12000×4000 Vertical head motor HP 10(std)/15(opt) Side head motor HP 10 Diving system mm Gear type(std) Ball screw(opt) Machine weight kgs 122000 143000 163000 Machine size L mm 19800 26000 29500 W mm 8400 H mm 5600(std) / 6150, 6650, 7150, 7650(opt)

* Specifications subject to change without prior notice. * Larger sizes are also available.
