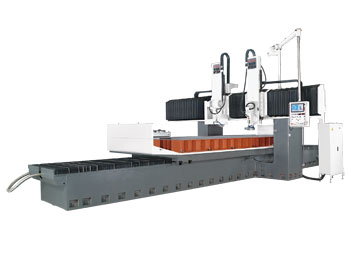

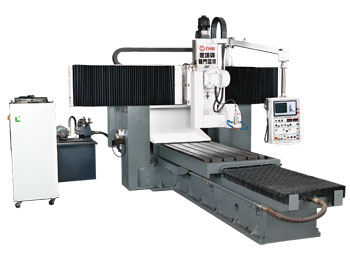

GP Plano Grinder Series

Description

Specifications

Table Size (L x W) mm 1500~3000 x 700 2000~6000 x 1000 3000~6000 x 1600
Wheel Bottom to Table mm 0~500 0~900
(1100)Opt.
0~900
(1100)Opt.
Spindle Center To Table (Approx.) mm 703 1154
(1354)Opt.
1154
(1354)Opt.
X Axis Travel mm 1500~3000 2000~6000 3000~6000
Y Axis Travel mm 1000 1500 2000
Z Axis Travel mm 500 600
(800)Opt.
600
(800)Opt.
Between Column Width mm 1040 1640 2140
X Axis Feed Rate (Hydraulic type) mm/min 5~25 5~30 5~30
Y Axis Rapid Traverse mm /min 2000 4000 4000
Z Axis Rapid Traverse mm/min 1000 2000 2000
Z Axis Min. Amount of Feed mm 0.002 0.002 0.002
Spindle Speed rpm 1500 1200 1200(Std.)
; 1000(Opt.)
Spindle Motor HP 10HP/4P 20HP/4P 20HP/4P(Std.)
;30HP/4P(Opt.)
Grinding Wheel Size mm Ø406xØ127x
50(Std.)
Ø508xØ203x
50(Std.)
Ø508xØ203x
50(Std.) ;
Ø610xØ254x
100(Opt.)
T-Slot of Table mm 18 / 22 22 / 24 22 / 24
Control System PC-BASE PC-BASE PC-BASE
Table Size (L x W) mm 3000~8000 x 2000 4000~10000 x 2500
Wheel Bottom to Table mm 0~900
(1100)Opt.
0~1000
(1350)Opt.
Spindle Center To Table (Approx.) mm 1254
(1604)Opt.
1254
(1604)Opt.
X Axis Travel mm 3000~8000 4000~10000
Y Axis Travel mm 2500 3000
Z Axis Travel mm 600
(800)Opt.
750
(1100)Opt.
Between Column Width mm 2640 3140
X Axis Feed Rate (Hydraulic type) mm/min 5~30 5~30
Y Axis Rapid Traverse mm /min 4000 4000
Z Axis Rapid Traverse mm/min 2000 2000
Z Axis Min. Amount of Feed mm 0.002 0.002
Spindle Speed rpm 1200(Std.)
; 1000(Opt.)
1200(Std.)
; 1000(Opt.)
Spindle Motor HP 20HP/4P(Std.)
;30HP/4P(Opt.)
20HP/4P(Std.)
;30HP/4P(Opt.)
Grinding Wheel Size mm Ø508xØ203x
50(Std.) ;
Ø610xØ254x
100(Opt.)
Ø508xØ203x
50(Std.) ;
Ø610xØ254x
100(Opt.)
T-Slot of Table mm 24 / 28 24 / 28
Control System PC-BASE PC-BASE
Table Size (L x W) mm 4000~12000 x 3000 6000~12000 x 3500
Wheel Bottom to Table mm 0~1000
(1350)Opt.
0~1000
(1350)Opt.
Spindle Center To Table (Approx.) mm 1254
(1604)Opt.
1305
(1655)Opt.
X Axis Travel mm 4000~12000 6000~12000
Y Axis Travel mm 3500 4000
Z Axis Travel mm 750
(1100)Opt.
750
(1100)Opt.
Between Column Width mm 3640 4140
X Axis Feed Rate (Hydraulic type) mm/min 5~30 5~30
Y Axis Rapid Traverse mm /min 4000 4000
Z Axis Rapid Traverse mm/min 2000 2000
Z Axis Min. Amount of Feed mm 0.002 0.002
Spindle Speed rpm 1200(Std.)
; 1000(Opt.)
1000
Spindle Motor HP 20HP/4P(Std.)
;30HP/4P(Opt.)
30HP/4P
Grinding Wheel Size mm Ø508xØ203x
50(Std.) ;
Ø610xØ254x
100(Opt.)
Ø610xØ254x
100(Std.)
T-Slot of Table mm 24 / 28 24 / 28
Control System PC-BASE PC-BASE
